ARB Intensity Solis 21 EU Spec

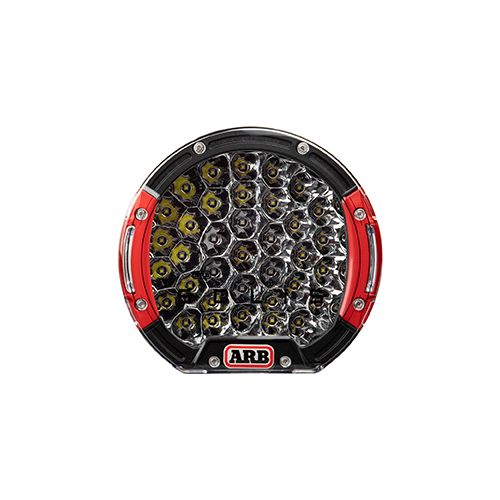

Intensity Solis 21 LED Driving Light

Features:

• 21 Osram LED (15x 4W + 6x 5W)

• 50,000+ Hour LED life span

• Input voltage 10-30VDC

• Raw Lumens 9133LM

• Colour Temperature: 5700 Kelvin

• 9° full beam width.

• Operating Temperature

​-40°C to +65°C, -40°F to+149°F.

• Weight 2.73kg (6.02lbs)

• Integrated thermal management

• Pressure equalisation breather

• High pressure die-cast aluminiumbody and mount with variablepositions

• Virtually unbreakable polycarbonatelens

• UV stable moulded polycarbonate lens cover

• Durable UV stable powder coat

• High power Amphenol AT06 waterproof connector

• Over Voltage Protection to 30VDC

• Protected against RFI/EMC interference

• Dust and waterproof to IP68

• Tested to MIL810-STDG for vibration

• RoHS compliant

• CE compliant

• UNECE R10 compliant

• For Intensity Level #3 (UNECE R149 compliant)

​o Power draw 36W

​o Current draw 2.7 Amps @ 13.2V

​o Effecti​ve Lumens 2,700LM

​o Distance @ 1Lux – 426m (single light)

• For Intensity Level #5

​o Power draw 82W

​o Current draw 6.2 Amps @ 13.2V

​o Effective Lumens 6,000LM

​o Distance @ 1Lux – 620m (single light)

• Warranty 3 years – Global warranty

• Included

​o 2 x Lights & 2 x Clear cover

​o 2 x Mounting bracket & Mounting

Hardware kit

​o UV-resistant interchangeable red or black bezels to suit

​o Wiring loom with dimmer (touchpad) – PN SJBEUHARN

Light Dimensions (Single)

• 192mm (7.56”) x 190mm (7.48”) x 114mm (4.49)” (D)
